tobac example: Tracking of precipitation features#

This example notebook demonstrates the use of tobac to track precipitation features from isolated deep convective clouds.

The simulation results used in this example were performed as part of the ACPC deep convection intercomparison case study (http://acpcinitiative.org/Docs/ACPC_DCC_Roadmap_171019.pdf) with WRF using the Morrison microphysics scheme.

The data used in this example is downloaded from “zenodo link” automatically as part of the notebooks (This only has to be done once for all the tobac example notebooks).

Import necessary python libraries:

[1]:

# Import a range of python libraries used in this notebook:
import datetime
import shutil
from pathlib import Path
from six.moves import urllib

import numpy as np
import pandas as pd
import xarray as xr

import matplotlib.pyplot as plt
%matplotlib inline

[2]:

# Import tobac itself
import tobac
print('using tobac version', str(tobac.__version__))

using tobac version 1.6.2

[3]:

# Disable a few warnings:
import warnings
warnings.filterwarnings('ignore', category=UserWarning, append=True)
warnings.filterwarnings('ignore', category=RuntimeWarning, append=True)
warnings.filterwarnings('ignore', category=FutureWarning, append=True)
warnings.filterwarnings('ignore',category=pd.io.pytables.PerformanceWarning)

Download example data:

Actual download has to be performed only once for all example notebooks!

[4]:

data_out=Path('../')

[5]:

# Download the data: This only has to be done once for all tobac examples and can take a while
data_file = list(data_out.rglob('data/Example_input_Precip.nc'))
if len(data_file) == 0:
    file_path='https://zenodo.org/records/3195910/files/climate-processes/tobac_example_data-v1.0.1.zip'
    #file_path='http://zenodo..'
    tempfile=Path('temp.zip')
    print('start downloading data')
    request=urllib.request.urlretrieve(file_path, tempfile)
    print('start extracting data')
    shutil.unpack_archive(tempfile, data_out)
    tempfile.unlink()
    print('data extracted')
    data_file = list(data_out.rglob('data/Example_input_Precip.nc'))

Load Data from downloaded file:

[6]:

Precip = xr.open_dataset(data_file[0]).surface_precipitation_average

[7]:

#display information about the iris cube containing the surface precipitation data:
display(Precip)

<xarray.DataArray 'surface_precipitation_average' (time: 47, south_north: 198,
                                                   west_east: 198)> Size: 7MB
[1842588 values with dtype=float32]
Coordinates:
  * time         (time) datetime64[ns] 376B 2013-06-19T20:05:00 ... 2013-06-1...
  * south_north  (south_north) int64 2kB 281 282 283 284 285 ... 475 476 477 478
  * west_east    (west_east) int64 2kB 281 282 283 284 285 ... 475 476 477 478
    latitude     (south_north, west_east) float32 157kB ...
    longitude    (south_north, west_east) float32 157kB ...
    x            (west_east) float64 2kB ...
    y            (south_north) float64 2kB ...
    x_0          (west_east) int64 2kB ...
    y_0          (south_north) int64 2kB ...
Attributes:
    long_name:  surface_precipitation_average
    units:      mm h-1
[8]:

#Set up directory to save output and plots:
savedir=Path("Save")
if not savedir.is_dir():
    savedir.mkdir()
plot_dir=Path("Plot")
if not plot_dir.is_dir():
    plot_dir.mkdir()

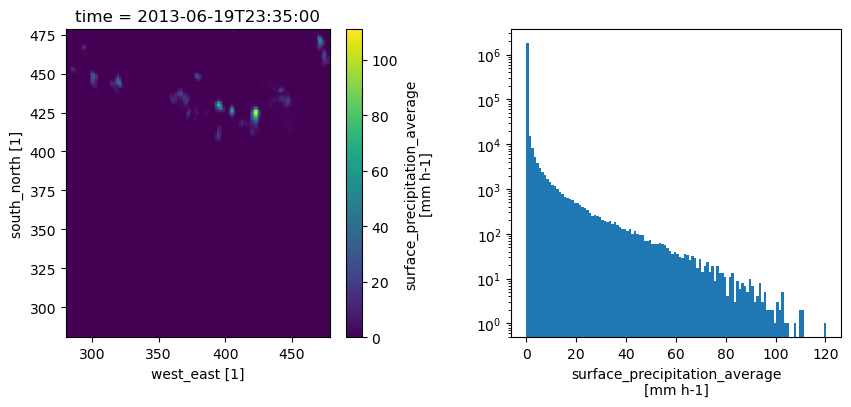

[9]:

plt.figure(figsize=(10,4))

ax1 = plt.subplot(1,2,1)
Precip[42].plot(ax=ax1)

ax2 = plt.subplot(1,2,2)
Precip.plot(ax=ax2, bins=120)
plt.yscale("log")

plt.subplots_adjust(wspace=0.35)
../../_images/examples_Example_Precip_Tracking_Example_Precip_Tracking_12_0.png

Feature detection:

Feature detection is perfomed based on surface precipitation field and a range of thresholds

[10]:

# Dictionary containing keyword options (could also be directly given to the function)
parameters_features={}
parameters_features['position_threshold']='weighted_diff'
parameters_features['sigma_threshold']=0.5
parameters_features['min_distance']=0
parameters_features['sigma_threshold']=1
parameters_features['threshold']=[1,2,3,4,5,10,15] #mm/h
parameters_features['n_erosion_threshold']=0
parameters_features['n_min_threshold']=3

[11]:

# get temporal and spation resolution of the data
dxy,dt=tobac.get_spacings(Precip)

[12]:

# Feature detection based on based on surface precipitation field and a range of thresholds
print('starting feature detection based on multiple thresholds')
Features=tobac.feature_detection_multithreshold(Precip,dxy,**parameters_features)
print('feature detection done')
Features.to_hdf(savedir / 'Features.h5','table')
print('features saved')

starting feature detection based on multiple thresholds
feature detection done
features saved

[13]:

Features.head()

[13]:
frame idx hdim_1 hdim_2 num threshold_value feature time timestr south_north west_east latitude longitude x y x_0 y_0
0 0 1 50.065727 139.857477 9 1 1 2013-06-19 20:05:00 2013-06-19 20:05:00 331.065727 420.857477 29.846362 -94.172015 210678.738492 165782.863285 420.857477 331.065727
1 0 15 120.527119 172.500325 4 1 2 2013-06-19 20:05:00 2013-06-19 20:05:00 401.527119 453.500325 30.166929 -93.996892 227000.162468 201013.559414 453.500325 401.527119
2 0 18 126.779273 145.368401 15 1 3 2013-06-19 20:05:00 2013-06-19 20:05:00 407.779273 426.368401 30.196499 -94.139960 213434.200454 204139.636582 426.368401 407.779273
3 0 34 111.611369 155.452030 4 2 4 2013-06-19 20:05:00 2013-06-19 20:05:00 392.611369 436.452030 30.126871 -94.087317 218476.015240 196555.684682 436.452030 392.611369
4 0 35 111.765231 164.938866 8 2 5 2013-06-19 20:05:00 2013-06-19 20:05:00 392.765231 445.938866 30.127221 -94.037226 223219.433218 196632.615461 445.938866 392.765231

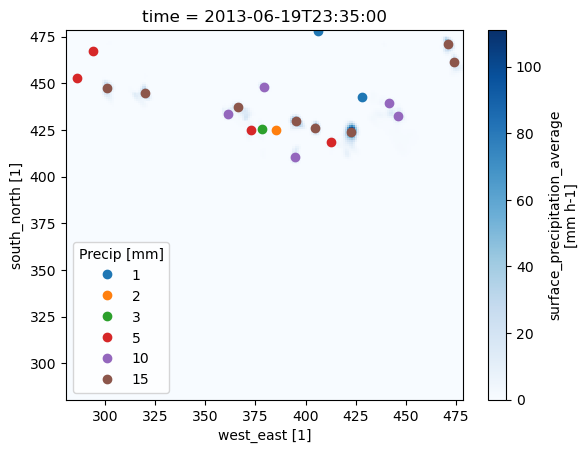

[14]:

frame=42
Precip[frame].plot(cmap="Blues")
points = {
    threshold:plt.plot(ft.west_east, ft.south_north, "o")[0]
    for threshold, ft in Features[Features.frame==frame].groupby("threshold_value")
}
plt.legend(list(points.values()), list(points.keys()), title="Precip [mm]")

[14]:

<matplotlib.legend.Legend at 0x31a306900>
../../_images/examples_Example_Precip_Tracking_Example_Precip_Tracking_18_1.png

Segmentation:

Segmentation is performed based on a watershedding and a threshold value:

[15]:

# Dictionary containing keyword arguments for segmentation step:
parameters_segmentation={}
parameters_segmentation['method']='watershed'
parameters_segmentation['threshold']=1  # mm/h mixing ratio

[16]:

# Perform Segmentation and save resulting mask to NetCDF file:
print('Starting segmentation based on surface precipitation')
Mask, Features_Precip = tobac.segmentation_2D(Features, Precip, dxy, **parameters_segmentation)
print('segmentation based on surface precipitation performed, start saving results to files')
Mask.to_netcdf(savedir / 'Mask_Segmentation_OLR.nc', encoding={"segmentation_mask":{"zlib":True, "complevel":4}})
Features_Precip.to_hdf(savedir / 'Features_Precip.h5', 'table')
print('segmentation surface precipitation performed and saved')

Starting segmentation based on surface precipitation
segmentation based on surface precipitation performed, start saving results to files
segmentation surface precipitation performed and saved

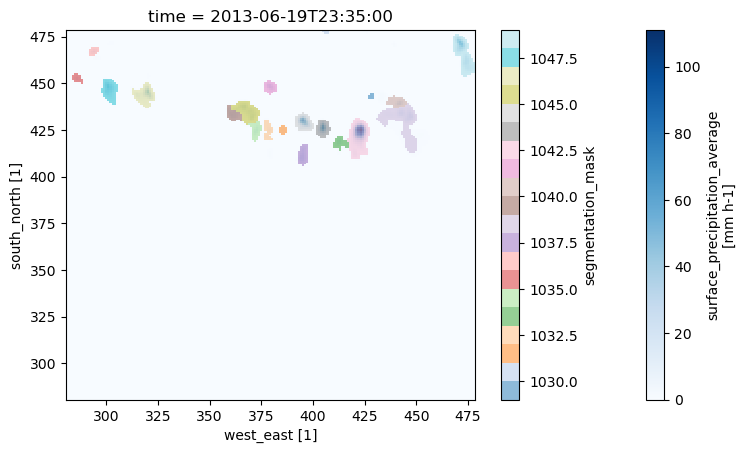

[17]:

plt.figure(figsize=(8.8, 4.8))
Precip[frame].plot(cmap="Blues", cbar_kwargs=dict(pad=0.1))
Mask[frame].where(Mask[frame]>0).plot(cmap="tab20", alpha=0.5)

[17]:

<matplotlib.collections.QuadMesh at 0x31caaefd0>
../../_images/examples_Example_Precip_Tracking_Example_Precip_Tracking_22_1.png

Trajectory linking:

Trajectory linking is performed using the trackpy library (http://soft-matter.github.io/trackpy). This takes the feature positions determined in the feature detection step into account but does not include information on the shape of the identified objects.

[18]:

# Dictionary containing keyword arguments for the linking step:
parameters_linking={}
parameters_linking['method_linking']='predict'
parameters_linking['adaptive_stop']=0.2
parameters_linking['adaptive_step']=0.95
parameters_linking['extrapolate']=0
parameters_linking['order']=1
parameters_linking['subnetwork_size']=100
parameters_linking['memory']=0
parameters_linking['time_cell_min']=5*60
parameters_linking['method_linking']='predict'
parameters_linking['v_max']=10

[19]:

# Perform trajectory linking using trackpy and save the resulting DataFrame:
Track=tobac.linking_trackpy(Features, Precip, dt=dt, dxy=dxy, **parameters_linking)
Track.to_hdf(savedir / 'Track.h5', 'table')

Frame 46: 18 trajectories present.

Visualistation:

[20]:

# Set extent for maps plotted in the following cells ( in the form [lon_min,lon_max,lat_min,lat_max])
axis_extent=[-95,-93.8,29.5,30.6]

[21]:

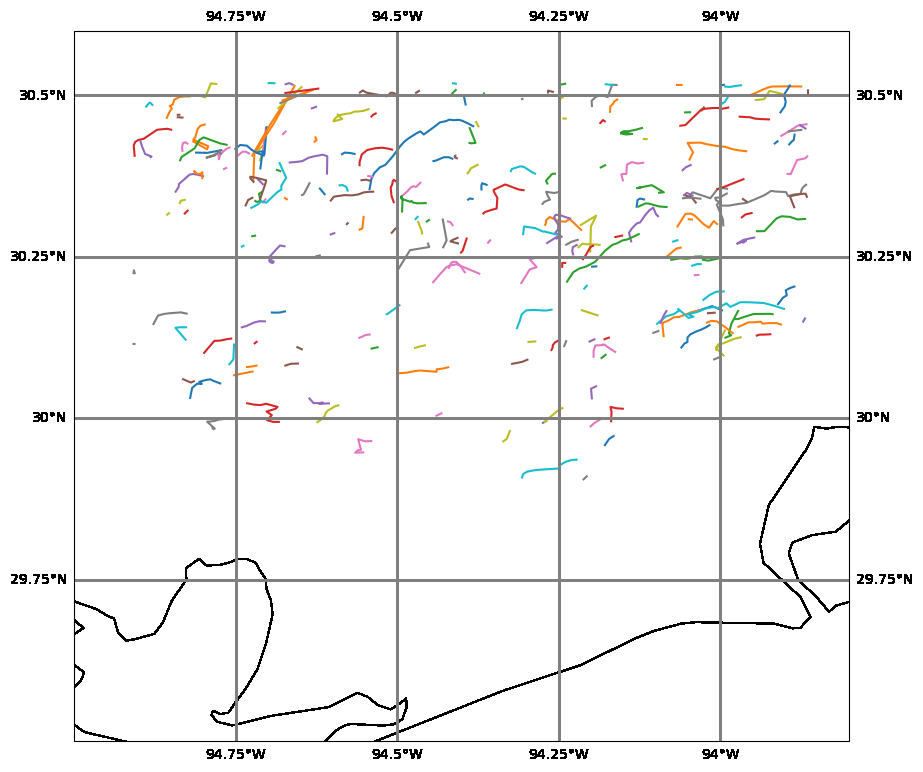

# Plot map with all individual tracks:
import cartopy.crs as ccrs
fig_map, ax_map=plt.subplots(figsize=(10,10), subplot_kw={'projection': ccrs.PlateCarree()})
ax_map=tobac.map_tracks(Track, axis_extent=axis_extent, axes=ax_map)
../../_images/examples_Example_Precip_Tracking_Example_Precip_Tracking_28_0.png
[22]:

# Lifetimes of tracked features:
fig_lifetime,ax_lifetime=plt.subplots()
tobac.plot_lifetime_histogram_bar(Track,axes=ax_lifetime,bin_edges=np.arange(0,120,10),density=False,width_bar=8)
ax_lifetime.set_xlabel('lifetime (min)')
ax_lifetime.set_ylabel('counts')

[22]:

Text(0, 0.5, 'counts')
../../_images/examples_Example_Precip_Tracking_Example_Precip_Tracking_29_1.png
[23]:

# Create animation of tracked clouds and outlines with OLR as a background field
animation_tobac=tobac.animation_mask_field(
    Track, Features, Precip, Mask,
    axis_extent=axis_extent,
    vmin=0, vmax=60, extend='both', cmap='Blues',
    plot_outline=True, plot_marker=True, marker_track='x',
    plot_number=True, plot_features=True
)

[24]:

# Display animation:
from IPython.display import HTML, Image, display
HTML(animation_tobac.to_html5_video())

[24]:

<Figure size 640x480 with 0 Axes>
